代理西门子文本显示器TD400C

蓝色背光LCD 4行文本显示器可自定义前面板6AV6640-0AA00-0AX0

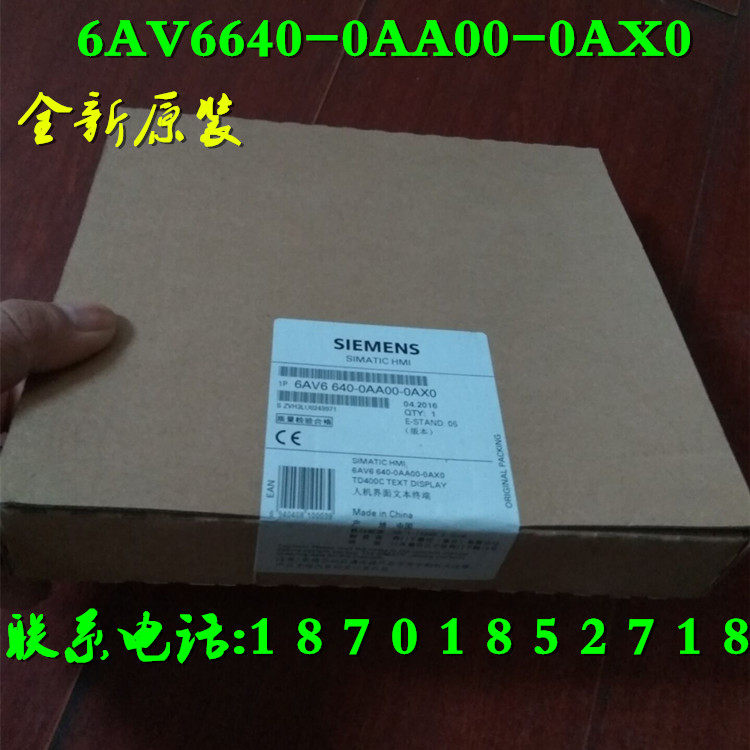

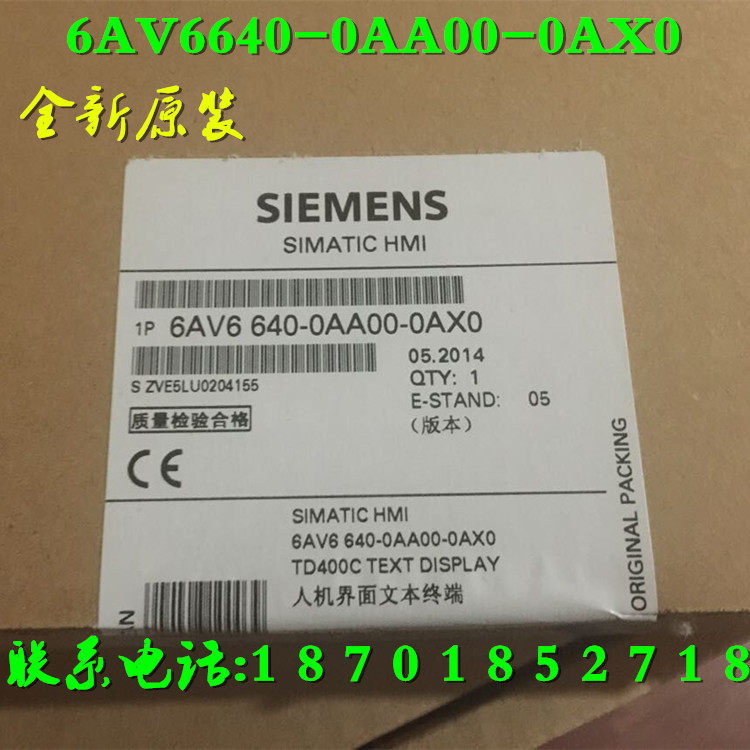

6AV6640-0AA00-0AX0西门子TD400C文本显示器面板全新原装正品现货

6AV6640-0AA00-0AX0

TD400C

蓝色背光LCD，4行文本显示器，可自定义前面板

6AV6640-0AA00-0AX0 TD400C文本显示器面板6AV6 640-0AA00-0AX0

名称：TD400C文本显示器

型号：6AV6640-0AA00-0AX0

产品说明：蓝色背光LCD，4行文本显示器，可自定义前面板

产品图片：

6AV6640-0AA00-0AX0

相似图像

TD400C 新一代文本显示器，4行中文文本显示，时尚蓝色背光

列表价（不含增值税）	显示价格
您的单价（不含增值税）	显示价格
PDF 格式的数据表	下载
服务和支持 (手册，认证，问答...)	下载

产品
商品编号(市售编号)	6AV6640-0AA00-0AX0
产品说明	TD400C 新一代文本显示器，4行中文文本显示，时尚蓝色背光
产品家族	订货数据总览
产品生命周期 (PLM)	PM300:有效产品
价格数据
价格组 / 总部价格组	AV /
列表价（不含增值税）	显示价格
您的单价（不含增值税）	显示价格
金属系数	无
交付信息
出口管制规定	AL : N / ECCN : N
工厂生产时间	8 天
净重 (Kg)	0.3 Kg
产品尺寸 (W x L X H)	未提供
包装尺寸	未提供
包装尺寸单位的测量	未提供
数量单位	1 件
包装数量	未提供
其他产品信息
EAN	6940408100039
UPC	未提供
商品代码	85389099
LKZ_FDB/ CatalogID	ST80XX
产品组	3409
原产国	中国

6AV6648-0CC11-3AX0

SIMATIC HMI SMART 700 IE V3, SMART PANEL, TOUCH OPERATION, 7" WIDESCREEN TFT DISPLAY, 65536 COLORS, RS422/485 INTERFACE, ETHERNET(RJ45) INTERFACE, HOST USB TYPE A, RTC SUPPORT, WITH CE CERTIFICATE, CONFIGURATION FROM WINCC FLEXIBLE SMART; CONTAINS OPEN SOURCE SW WHICH IS PROVIDED FREE OF CHARGE FOR DETAILS SEE CD

6ES7235-0KD22-0XA8

EM 235 模拟量输入/输出模块4 输入/1 输出

6AV6648-0CE11-3AX0

SIMATIC HMI SMART 1000 IE V3, SMART PANEL, TOUCH OPERATION, 10" WIDESCREEN TFT DISPLAY, 65536 COLORS, RS422/485 INTERFACE, ETHERNET(RJ45) INTERFACE, HOST USB TYPE A, RTC SUPPORT, WITH CE CERTIFICATE, CONFIGURATION FROM WINCC FLEXIBLE SMART; CONTAINS OPEN SOURCE SW WHICH IS PROVIDED FREE OF CHARGE FOR DETAILS SEE CD

6AV2124-0GC01-0AX0

SIMATIC HMI TP700 COMFORT, COMFORT PANEL, TOUCH OPERATION, 7" WIDESCREEN-TFT-DISPLAY, 16 MIL. COLORS, PROFINET INTERFACE, MPI/PROFIBUS DP INTERFACE, 12 MB USER MEMORY, WINDOWS CE 6.0, CONFIGURABLE FROM WINCC COMFORT V11

6ES7214-2AD23-0XB8

CPU 224XP DC/DC/DC 14 输入/10 输出
